HYDRO66 - Boden, sweden
In this video Alex Chiolo, Hydro66 Operations Manager, discusses how Hydro66 worked with EcoCooling to develop an adiabatic cooler which could operate in the cold conditions present in the region. EcoCooling and Hydro66 are both members of The Node Pole Alliance.
ECOCOOLING’S NEW EFFICIENT NORDIC COOLING PRODUCT RANGE HELP HYDRO66 REDUCE ENERGY USE.
Hydro66, founded in 2014 is a pioneering, ultra-efficient, green-field colocation data center located in Boden, Northern Sweden. A key objective of the company was to design their new Nordic data centre to operate at a power usage effectiveness (PUE) – the ratio of total amount of energy used by a data centre to the energy delivered to computing equipment – of less than 1.05. This could only be achieved using fresh-air cooling (EcoCooling ECT10800 Nordic Cooling range) supported by the most efficient uninterruptible power supply (UPS) and power distribution.

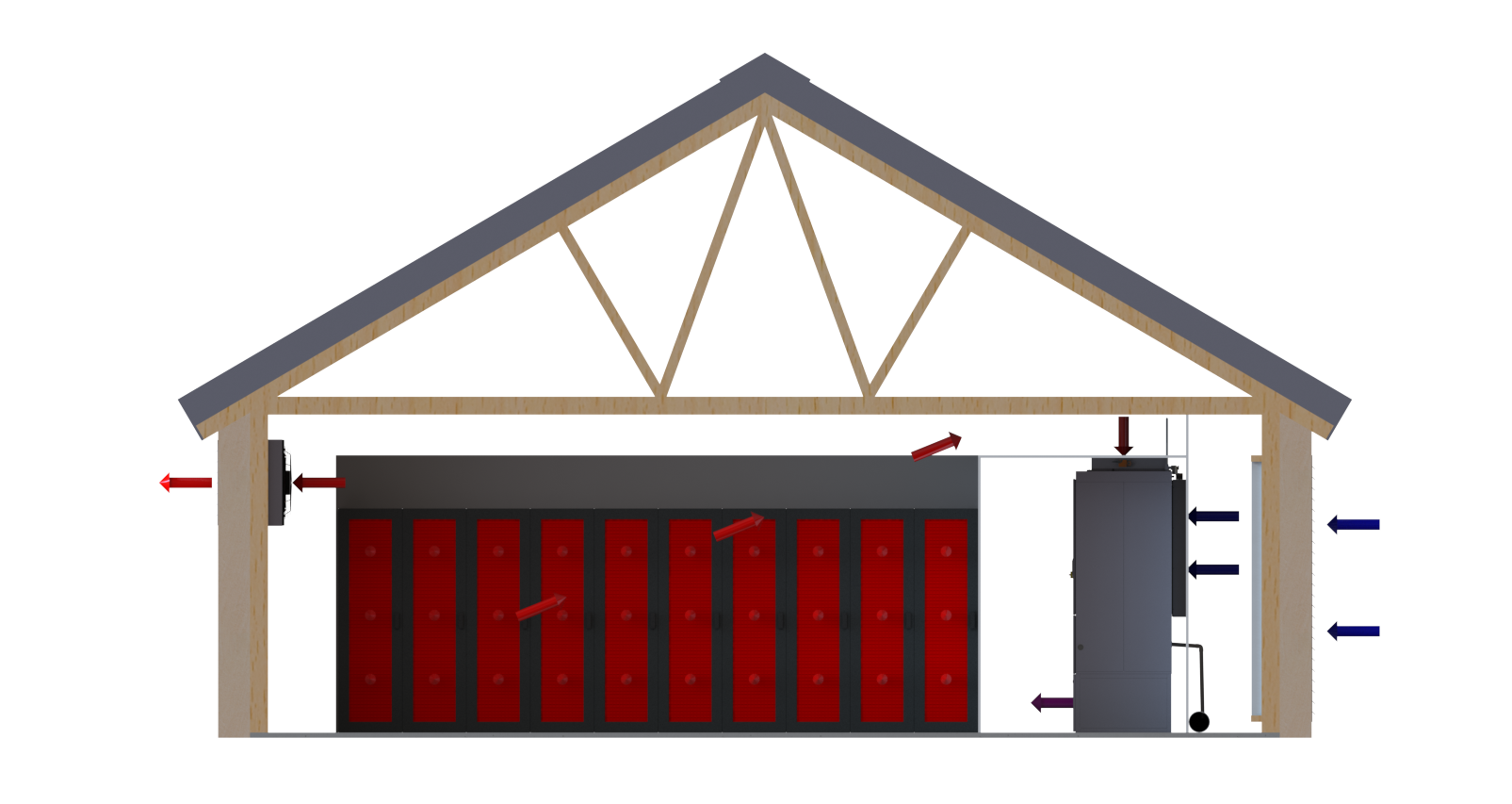

Hydro66 decided to use a direct ventilation system supplemented by evaporative cooling (EcoCooling ECT10800 Nordic Cooling range). The equipment is modular and installed internally, thereby avoiding planning issues. Electronically commutated (EC) axial fans are used for air movement. With very low pressures, axials can also accommodate the larger flow rates and pressure, and their motors are efficient, quiet and have simple speed controls. The efficiency of a fan is approximately proportional to the cube of the speed. Data centres require redundancy of N+1, 2N or 2(N+1), so equipment is operated at part capacity.
By controlling all of the EC fans as a group – and reducing the air flow rate to that required by the IT equipment reductions in consumer fan power can be achieved, producing remarkable efficiencies. On average, 1MW of IT equipment will require an airflow of 90m³/s of air at compliant temperatures. Since the data centre has both redundancy and spare capacity, the ventilation rate is reduced and further savings are made. For example, running a fan at 80% reduces energy use by half and, at 50%, to 12.5%. An intelligent control system is used by Hydro66 constantly to optimise the fan energy use to reflect actual cooling requirements in a dynamic environment. On warmer days, the adiabatic cooling is enabled, bringing the supply air down to approach the wet-bulb temperature of the ambient air. In Boden, this means the supply air will never exceed 22C, which is compliant with all standards without the need to use additional mechanical refrigeration.
Hydro66 had a very clear vision on how we could bring a new model to colocation – one where the customer wins significantly on both cost and on sustainability. We were fortunate to discover EcoCooling who were able to exceed our expectations. Not only in terms of pure efficiency of their equipment, but more importantly their desire and capability to enhance their solutions to our specific use case.
ALEX CHIOLO, HYDRO66 OPERATIONS DIRECTOR
The use of adiabatic cooling will increase the moisture content, while reducing dry-bulb temperature, so increasing the relative humidity of the air. With reference to the ASHRAE 2011 Thermal Guidelines, high relative humidity (RH) will normally only cause corrosion with other contaminants in the air. If gases such as sulphur or chlorine are in the ambient air, these, plus high RH, can cause corrosion. Boden has ‘clean’ air because there are no local industries producing contaminants.
The combination of high RH and dust or particulates can also create problems, so all incoming and recirculating air is filtered. In relatively clean conditions such as those in Boden, EU4 is a suitable level of filtration. Increasing this can result in significant increases in capital cost, maintenance requirements and fan energy use. A direct fresh-air system
A direct fresh-air system operating in arctic conditions at the coldest time of the year can result in very low RH in the data centre. Low RH, in conjunction with other factors, can cause problems with electrostatic discharge (ESD), which can damage IT equipment. EcoCooling specially designed Nordic cooling system incorporates a recirculation loop, where – in low RH conditions – the warm air from the data centre is passed over the adiabatic pads to humidify the air above the ASHRAE 2011 Thermal Guidelines’ allowable level of 20%. This novel solution, therefore, uses the adiabatic pads for two functions – cooling in hot weather and humidification in cold weather conditions.
Hydro66 has constructed a low capital cost, flexible data centre, which has achieved a PUE of less than 1.05. The direct fresh-air Nordic cooling system complements the Download the data sheet for the ECT10800 internal evaporative cooler with humidification. More information on data centre cooling
